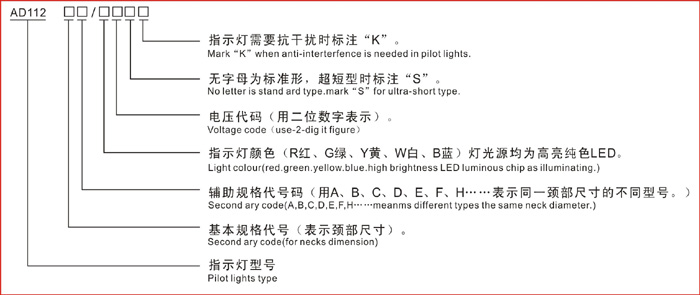

●型号及含义/(MODEL AND EXPLANATILN)

●适用环境/WORKING CONDITION

1、环境温度：-25℃~+55℃；
2、空气相对湿度≤98%；
3、在振动频率为2-80Hz加速度为0.7g不能正常工作；
4、污染等级为3级，安装类别为Ⅲ类。
5、有“TH”标志的能在湿热带环境下工作。

1.ambient temperature:-25℃~+55℃;
2.relative humidity:≤98%；
3.nomally workable when vibration frequency is 2-80Hz with acceleration of.0.7g；
4.pollution degree is 3,installation group is Ⅲ。
5.“TH”marked can work at damp-heat environment.

●主要技术指标/TECHNICAL DATA

1、工频耐压：2.5KV(交流有音效值)，1min。
2、绝缘电阻≥2MΩ;
3、交流指示灯允许电压波动±20%
4、连续工作寿带领≥30000H
5、光亮度≥100cd/m2
6、相比漏电超痕数CTI≥600
7、头部防护等级IP65，可制IP67
8、使用频率AC50~60Hz

1.Power frequency withstand voltage:2.5kv/1min(effective AC value)
2.insulation resistance:≥2MΩ;
3.Allowable voltage fluctuation:±20%
4.Continuous operating life:≥30000H
5.Brigtnss:≥100cd/m2
6.CTI≥600
7.Protection degree of the head IP 65,IP67 is available on request.
8.Applying frequency:AC50~60Hz

●电压电流及代码对照表/(COMPARISON TABLE OF VOLTAGE,CURENT AND CODES)
